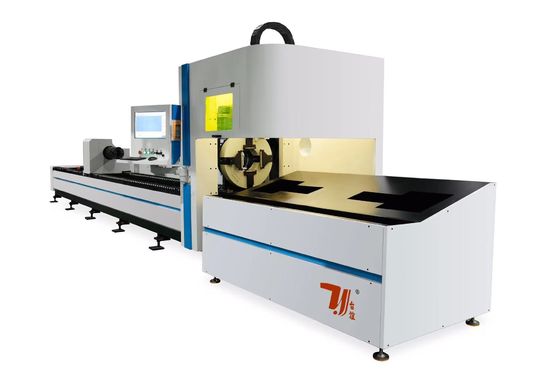

CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine

CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine
CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine
CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine

Gambar besar :  CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine

Detail produk:
Tempat asal: CINA
Nama merek: TAIYI
Sertifikasi: CE
Nomor model: TI-6035
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 set
Harga: Contact us for the price
Kemasan rincian: Ekspor Pengemasan Standar
Waktu pengiriman: 20-50 hari kerja
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan: 100 set/bulan
Kontak

CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine

Deskripsi
Sumber laser: Raycus MAX IPG opsional Kekuatan laser: 2000W/3000W/6000W
Kecepatan pemotongan: 100m/mnt Percepatan maksimum: 1.5g
Wilayah kerja: 6035 Akurasi berulang: ± 0,03mm
Mode pendinginan: Pendingin air Permintaan listrik: 380V 50Hz/60Hz
Kepala laser: Raytools WSX OSPRI Opsional Sistem Kontrol: Cypcut Raytools Opsional
Bahan pemotongan: Baja karbon baja tahan karat dll Layanan purna jual: Dukungan online/Insinyur dapat melayani di luar negeri
Kecepatan Chuck: 120rpm
Menyoroti:

CNC fiber laser cutting machine

,

semi-auto tube laser cutter

,

round square tube laser cutter

CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine

CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine 0

CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine 1CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine 2CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine 3CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine 4CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine 5

CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine 6

 Laser source  Raycus (Option:Max,IPG,BWT)
 Output power of laser source  2000W/3000W/6000W optional
 Cutting Area 6000*350mm
Max Cutting Pipe Dia 60mm
Min Cutting Pipe Dia 20mm
 Max positioning speed  100m/min
Maximum Acceleration  1.5G
Positioning Accuracy ±0.03mm
 Laser cutting head  Raytools (option: WSX)
 Control system  Raytools(option:Cpycut)
 Transmission  Double Drive Gear Rack
 Guide rail  Taiwan Hiwin Guide Rail
 Electricity demand  380V    50Hz/60HZ
 Working temperature  0-50℃
 Cooling  Water cooling
 Continuous working time  24 Hours
 Appearance size  12000*2800*2400mm

CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine 7

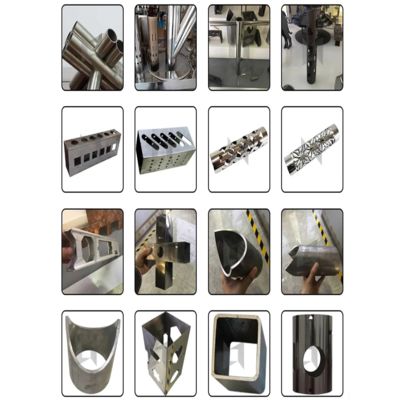

Applied materials:
Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.

Applied Industries:

Fiber laser cutting machine applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.



CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine 8

CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine 9

CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine 10

CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine 11CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine 12
