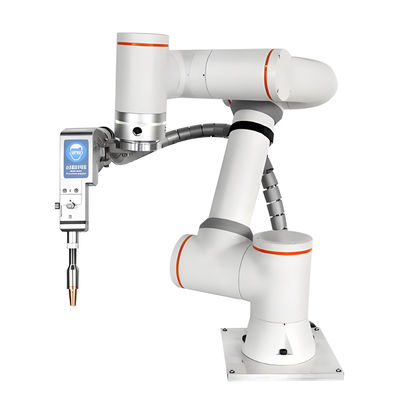

OEM Customized Cobot Laser Welding Machine Solution, 1500W-3000W for Appliances

Gambar besar : OEM Customized Cobot Laser Welding Machine Solution, 1500W-3000W for Appliances

Detail produk:

Tempat asal:	Guangdong, Cina
Nama merek:	TAIYI
Sertifikasi:	CE
Nomor model:	TY-HS6018

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	Contact us for the price
Kemasan rincian:	Ekspor Pengemasan Standar
Waktu pengiriman:	7-20 hari kerja
Syarat-syarat pembayaran:	T/T, Western Union, Moneygram, L/C
Menyediakan kemampuan:	500 buah

Kontak

OEM Customized Cobot Laser Welding Machine Solution, 1500W-3000W for Appliances

Deskripsi

Sertifikasi:	CE	Kondisi:	Baru
Jaminan:	2 Tahun	Bahan yang berlaku:	Logam
Kata kunci:	Robot Pengelasan 6 Sumbu	KEBIASAAN:	Menerima
Menyoroti:	OEM cobot laser welding machine , 1500W laser welding machine for appliances , 3000W robot laser welding solution

Hot Sale Fiber Laser Welding Machine with 6-axis Collaborative Cobot ,Multiple Sizes Are Available

OEM Customized Cobot Laser Welding Machine Solution, 1500W-3000W for Appliances 4

TECHNICAL GUIDANCE FOR ONTOLOGY

Robotic Arm Parameters	MaxArmspan		1077mm
	Payload		7kg
	Repeat Positioning		±0.02mm
	ToolMax speed		3000mm/s
	ControlBus/Freq		EtherCAT/1KHz
	Rated power		260W
	Temperature		-5~55℃
	Humidity		5%~90%RH,non-condensing
	Installation mode		Arbitrary angle
	Protection Degree		IP65
	weight		21kg
	Noise level		≤60dB
	Work port	1/0 Port	24V/18;DI:2D0:2AI
	Tool Pot	COM Port	24V/1A;1RS485:1 EtherCAT
Joint Movement Parameters	Iotion Range	J1	-360°“360°
		J2	-360°"360°
		J3	-165°“165°
		J4	-360°"360°
		J5	-360°360°
		J6	-360°“360°
	Max Speed	J1	210°s
		J2	210/s
		J3	210°/s
		J4	360°/s
		J5	360°/s
		J6	360°/s

OEM Customized Cobot Laser Welding Machine Solution, 1500W-3000W for Appliances 5

TECHNICAL GUIDANCE FOR ONTOLOGY

TECHNICAL GUIDANCE FOR ONTOLOGY
Robotic Arm Parameters	MaxArmspan		1460.7mm
	Payload		6kg
	Repeat Positioning		±0.05mm
	ToolMax speed		3000mm/s
	ControlBus/Freq		EtherCAT/1KHz
	Rated power		260W
	Temperature		-5~55℃
	Humidity		5%~90%RH,non-condensing
	Installation mode		Arbitrary angle
	Protection Degree		IP65
	weight		22kg
	Noise level		≤60dB
	Work port	1/O Port	24V/1A;DI;2D0;2AI
	Tool Port	COM Port	124V/1A;1RS485;1EtherCAT
Joint Movement Parameters	Motion Range	J1	-360°~360°
		J2	-360°~360°
		J3	-165°~165°
		J4	-360°~360°
		J5	-360°~360°
		J6	-360°~360°
	Max Speed	J1	210°s
		J2	210/s
		J3	210°/s
		J4	360°/s
		J5	360°/s
		J6	360°/s

OEM Customized Cobot Laser Welding Machine Solution, 1500W-3000W for Appliances 6

TECHNICAL GUIDANCE FOR ONTOLOGY
Robotic Arm Parameters	MaxArmspan		2027mm
	Payload		20kg
	Repeat Positioning		±0.05mm
	ToolMax speed		4000mm/s
	ControlBus/Freq		EtherCAT/1KHz
	Rated power		1500W
	Temperature		-5~55℃
	Humidity		5%~90%RH,non-condensing
	Installation mode		Arbitrary angle
	Protection Degree		IP65
	weight		68kg
	Noise level		≤60dB
	Work port	1/O Port	24V/1A;DI;2D0;2AI
	Tool Port	COM Port	124V/1A;1RS485;1EtherCAT
Joint Movement Parameters	Motion Range	J1	-360°~360°
		J2	-360°~360°
		J3	-165°~165°
		J4	-360°~360°
		J5	-360°~360°
		J6	-360°~360°
	Max Speed	J1	180°s
		J2	180°s
		J3	210°/s
		J4	270°/s
		J5	270°/s
		J6	270°/s
